Horizonial flow wrap biscuit

Model no. amp 700

Technical Specification (Model No. AMP 701)
Model AMP701
Sealing type Centre sealing/ pillow type sealing
Motor 2 H.P./50Hz
Heater

2x 125 W
4x125 W at 110Volts
M/C weight

700 Kegs
M/C dimensions 3600(L)x 1500(W) x 2000(H)
Packing size (mm)

L : 40-300, W : 20-125, H: 5-56
Enlarged type can be made on order
Optional Batch printing Machine

Salient Features
  1. Suitability to pack variety of solid shapes & Material.
  2. Capability to pack variety of sizes with high speed & Safety.
  3. Pouch cut-off length can be calibrated by pitch gears.
  4. All contact parts are made of stainless steel.
  5. With design registration systems.

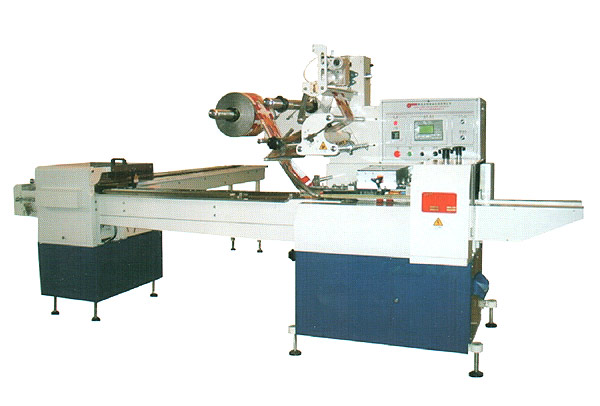

Model no. amp 703

Features & Advantages (AMP 703)
  1. For Biscuits, Rusks and any other bakery product.
  2. Feeding style: Cross Conveyor/Single Feeder/Manually.
  3. Optional Attachment: Batch Coding, Out feed Conveyor.
  4. It can be easily changed 2 line to 3 line, 3 line to 4 line.
  5. The machine is generally called family pack machine equipped with Batch Coding, PLC, AC drive and Photocell.
  6. Easy Operational and maintenance.

Packing Material
Any heat sealable laminated film such as polyester/poly, BOPP/Foil/Poly, heat sealable BOPP, Pearlised BOPP attached.
Machine Capacity
The capacity of the machine is dependent on the size of commodity to be wrapped. The speed will vary from 20 to 200 packets per minute.
